The Foot Pump system is the choice of champions worlwide. Designed to be effective and of minimalistic design to avoid issues. This pump system is suitable for use in kayaks and canoes.
- Standard Foot Pump - 2 x 120mm inflation pumps
The Foot Pump system consists of two inflations (one under each foot), two inlet and two outlet valves, pickup tubing, T-connectors and outlet plugs.
This Ultra Light Pump System, works simply with your usual paddle motion and leg drive and foot pressure.
The non-return valves are nylon injected, with a neoprene ball attached to a high quality stainless steel spring. The valves do not block as they are self cleaning in use.
The pump is capable of pumping 4.5 litres of water per minute.
Installation instruction sheet in product images or can be downloaded here.
Additional instructions for kayak fitting:
Tools required:
- Knife for cutting clear tubing
- 12mm drill bit for outlets
- 29mm Hole Saw for rubber pumps
- Fine grit sandpaper
- Hold rubbers in preferred position on push plate and neatly outline hole positions for drilling
- Drill 4 x holes with 29mm Hole Saw
- Gently sand holes to remove sharp edges
- Insert rubbers and fit valves to your liking

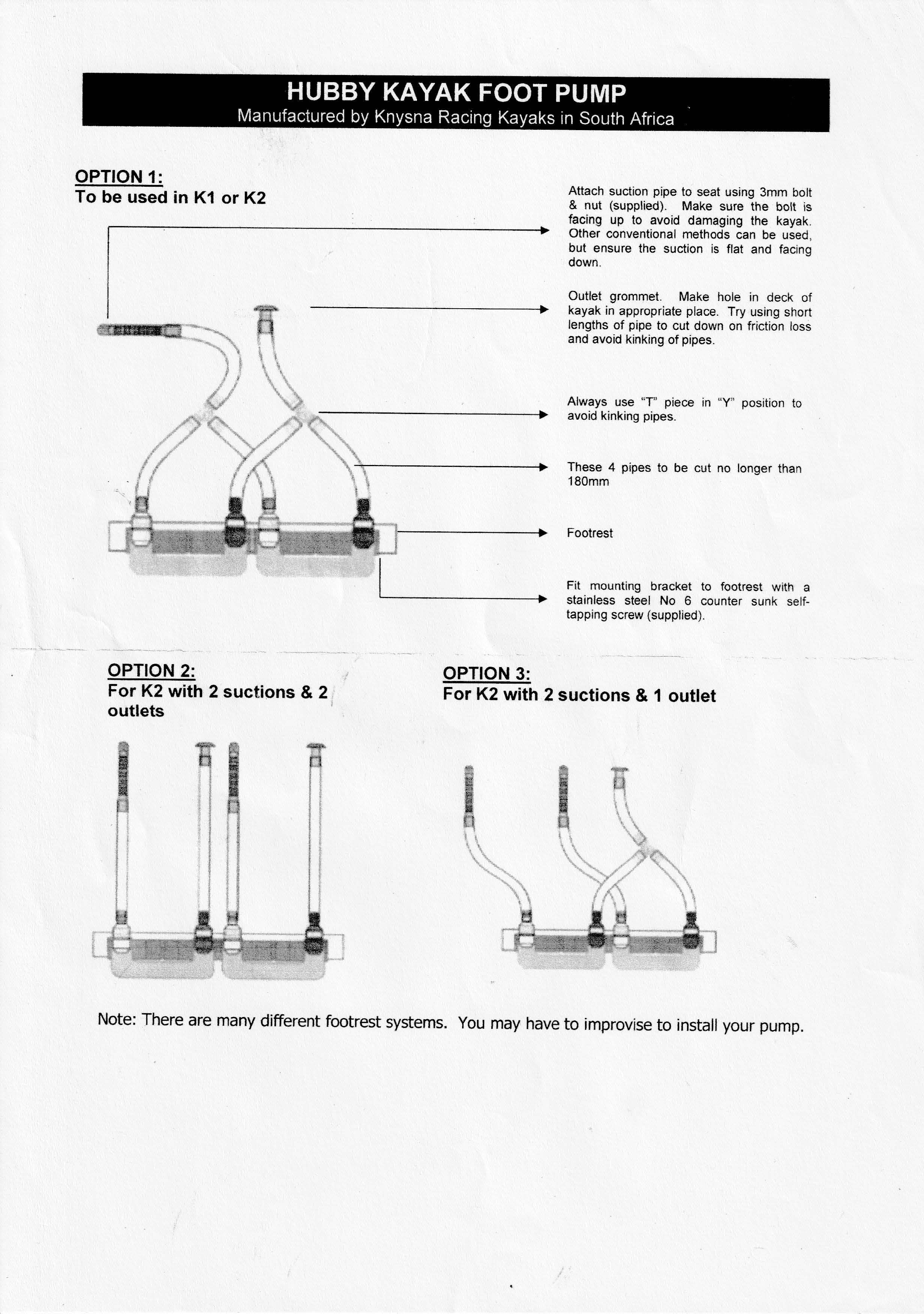

- See diagram for recommended layout
- Drill 1 or 2 12mm holes for outlets
- Connect all pipes and valves securely
- Fill boat with 5 litres of water to prime pumps and test suction
